Design of winglets for the DG 300 glider
Abstract: Design of winglets for the DG 300 glider
In the framework of a project and a bachelor thesis, under the supervision of experts from the Centre for Aviation, a group of students designed, built and certified new winglets for a DG 300 glider.
Scope of the bachelor thesis was to build and certify new winglets for a DG 300 sailplane. The basis was a student project by the same authors in which the aerodynamic shape was developed. The goal was achieved in three steps: first it was necessary to learn about the certification requirements and file an application for a Supplemental Type Certificate (STC) at EASA. Additionally, the structural loads on the winglets were calculated.

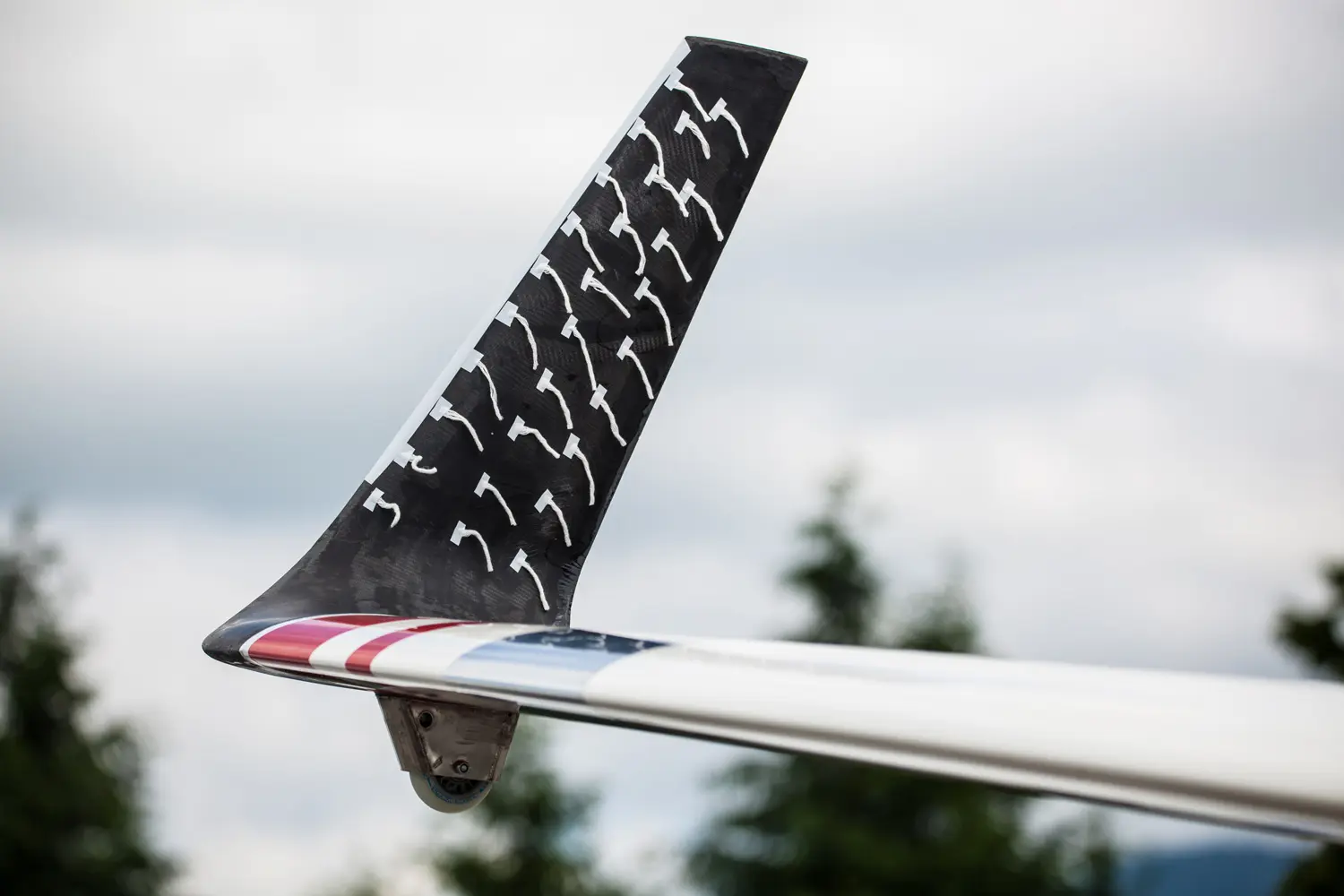

The next step was to actually build the winglets so that they would withstand the calculated loads. They were realised as carbon fibre half shells that were then glued together and fitted with an adapter kit.
The last step was dedicated to testing the new winglets. First of all, a static structural test was performed to demonstrate that the winglet could withstand a calculated maximum load of 393.3. The structure failed at a load of 1100 N. Thanks to this positive result it was possible to obtain a Permit to Fly from the swiss Federal Office for Civil Aviation (FOCA) and to perform the first test flight. The pilot commented positively on the improved lateral stability of the aircraft. Due to lack of time it was not possible to complete all required flight tests, therefore no STC has been obtained yet.
At a glance
- Participating Institutes and Centres: Zentrum für Aviatik (ZAV)
- Project management: Prof. Dr. Leonardo Manfriani, Hans Kandlbauer
- Project team: Flavio Ferrari, Marin Hartmann
